Sandbox turning machine
Selection table: TM - Flip torque, TS - Flip speed, W - Weight (without harness / chain)

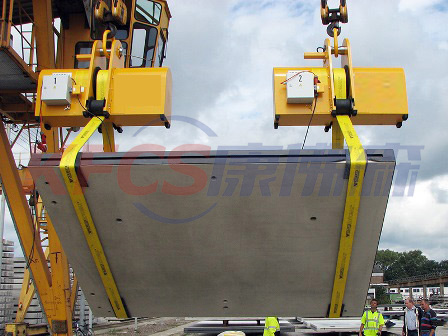

Type: KF-RE single type for two cranes
Linkage
Load capacity: 3 tons -20 tons
Scope of supply: basic configuration for hanging crane hook crane, with control line, with flashlight (left
/ Right and emergency stop), 400V / 50Hz 3 phase power,
48V control voltage with CEE 5-hole socket.
Product composition:
1.Hang up
2. Suspension bolts
3.Steel shell
4.Drive wheel
5. Counterweight
6. Sling or chain
7. Control box
8. CEE five hole socket
9. Hand-held doors and control lines
10. Connecting cable
Selection table: TM - Flip torque, TS - Flip speed, W - Weight (without harness / chain)
Model: KF-RVE electric type harness spacing can be electric
Dynamic adjustment
Load capacity: 1 ton -50 tons
Scope of supply: basic configuration for hanging crane hook crane, with control line, with flashlight (left/ Right and emergency stop), 400V / 50Hz 3 phase power,
48V control voltage with CEE 5-hole socket.
KF-RVE electric type turning machine
Flip machine Product composition:
1.hanging beam
2.Suspension
3.Suspension bolts
4.rubber pad feet
5.Drive device
6.Drive wheel
7.Chain or harness
8.Adjust the motor
9.Adjust the screw
10.Control box
11.CEE five hole socket
12.Manual doors and control lines
13.Maximum drive wheel spacing
14.Minimum drive wheel spacing
Selection table: TM - Flip torque, TS - Flip speed, W - Weight (without harness / chain)
Model: KF-RVM manual sling pitch is not adjustable
Load capacity: 1 ton -50 tons
Scope of supply: basic configuration for hanging crane hook crane, with control line, with flashlight (left/ Right and emergency stop), 400V / 50Hz 3 phase power,
48V control voltage with CEE 5-hole socket.
Turn the machine selection
product composition:
1.Hanging eye
2.Standard suspension
3.Suspension bolts
4.Rubber pad feet
5.Drive device
6.Lock the bolt
7.Drive wheel
8.Chain or harness
9.Control box
10.CEE five-hole socket
11.Hand-held doors and control lines
12.Maximum drive wheel spacing
13.Minimum drive wheel spacing
Selection table: TM - Flip torque, TS - Flip speed, W - Weight (without harness / chain)
Hanging Load Turning Device
