Design analysis and solution of bending restrictor origin China

03-Aug, 2020 1077 Hits

Design analysis and solution of bending restrictor origin China

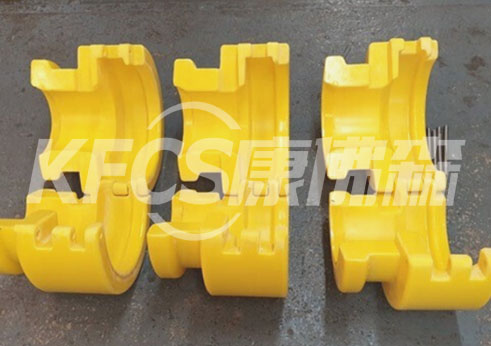

The bending restrictor solution is designed and manufactured in-house using the latest design software. The key information required for this process includes:

Outside diameter of hose;

Minimum bending radius;

Service life;

Cover length (by angle or length);

Support structure details;

Minimum and maximum internal temperature of flexible pipe; operation and installation;

If the pipe is heated, the minimum and maximum thermal conductivity values of the flexible pipe;

Minimum and maximum installation air temperature;

Minimum and maximum sea water operating temperature;

Installation and operating shear force;

Installation and operating bending moment;

If the bending moment and shear load are not considered, the pipe stiffness is flexible.
We can customized accroding to your needs.
