Bending restrictor and j-shaped tube center clamp for subsea solution

21-Oct, 2020 1005 Hits

Bending restrictor and j-shaped tube center clamp for subsea solution

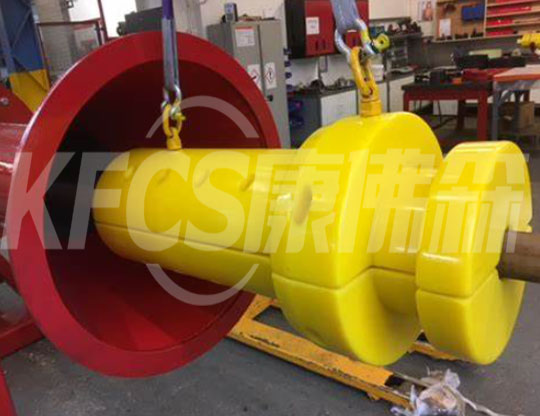

Bending restrictor and j-shaped pipe center clamp sealing The bend limiter is used to protect flexible pipes from excessive bending and bending caused by static loads during the installation or operation stage. The system includes a plurality of interlocking elements that are hinged together. At the design radius, the element is mechanically locked to form a semi-rigid curved structure that will not move further.
Advantage:
Split design allows installation of restrictors after pipeline termination;
Easy to install on shore and offshore;
Reduce the weight in the water and reduce the load on the pipeline;
Increase durability;
Application place: limiter for submarine cable protection.
